Overview

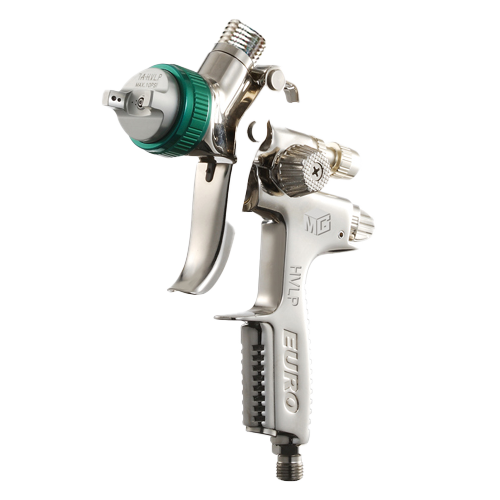

The MG Euro 3200 Series HVLP Air Spray Gun by MGD is a commercial-grade High Volume Low Pressure (HVLP) spray gun built for high-production automotive refinishers and industrial finishers requiring maximum paint transfer and wide coverage. Operating at an efficient 15–28 PSI, the MG Euro 3200 HVLP lays down a generous 270mm fan pattern with high fluid output (145 cc/min), drastically reducing job times and minimizing material waste.
Key Features
- 11 Precision Nozzle Configurations: Extreme versatility with nozzle sizes spanning 1.2mm for delicate topcoats up to 2.5mm for heavy primers and gelcoats.
- Efficient Air Consumption: Uses 250 L/Min at 1/4″ NPS air inlet, making it suitable for standard shop air setups while maintaining soft, low-overspray atomization.
- Wide 270mm Pattern Width: Delivers smooth, uniform fan coverage for fast panel painting and large surface coating.
- High Transfer HVLP Performance: Maximizes material utilization to meet strict environmental standards while reducing overspray bounce-back.
Technical Specifications
- Brand / Series: MGD / MG Euro 3200 HVLP
- Technology: High Volume Low Pressure (HVLP)
- Nozzle Sizes: 1.3mm, 1.4mm, 1.7mm, 1.9mm, 2.1mm, 2.5mm
- Working Pressure: 15–28 PSI
- Air Consumption: 250 L/Min (1/4″ NPS)
- Pattern Width: 270mm
- Fluid Output: 145 cc/min
