MG 5600 Series HVLP Nozzle Needle Kit

Overview

The MG 5600 Series HVLP Nozzle Needle Kit by MGD provides professional refinishers and shop managers with a precision-milled fluid solution for servicing or customizing their MG 5600 spray guns. Whether replacing a worn needle assembly or adapting tip sizes to match fluid viscosities—from ultra-thin basecoats to heavier primers—this 3-piece kit guarantees leak-free seating and maximum paint savings.

Key Features

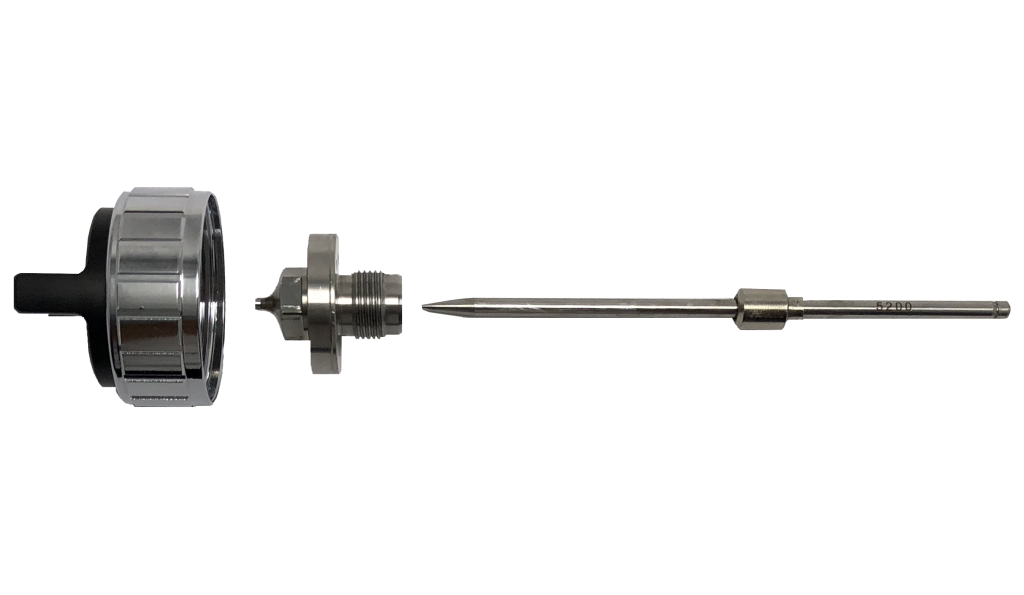

• Calibrated 3-Piece Assembly: Includes a micro-machined fluid tip, stainless steel fluid needle, and air cap designed to operate seamlessly together as a fluidly matched system.
• Versatile Nozzle Range: Available in popular sizes from 1.3mm for fine finishing up to 1.9mm for heavy primers, sealers, and single-stage enamels.
• Corrosion-Resistant Stainless Steel: Tough internal fluid passages resist corrosion from harsh solvents, waterborne automotive paints, and clearcoats under daily shop conditions.
• High HVLP Transfer Efficiency: Maintains low-pressure air cap atomization to reduce bounce-back, save material, and deliver clean, consistent overlap.

Technical Specifications

• Brand / Series: MGD / MG 5600 Series HVLP
• Product Type: HVLP Spray Gun Nozzle, Needle, & Air Cap Set
• Compatible Guns: MG 5600 Series HVLP Spray Guns
• Available Sizes: 1.3mm, 1.4mm, 1.7mm, 1.9mm
• Components Included: (1) Fluid Tip, (1) Fluid Needle, (1) HVLP Air Cap
• Fluid Passages: Stainless Steel
• Suitable Applications: Basecoats, Clearcoats, Single-Stage Finishes, Sealers, Primers, Waterborne Paints
