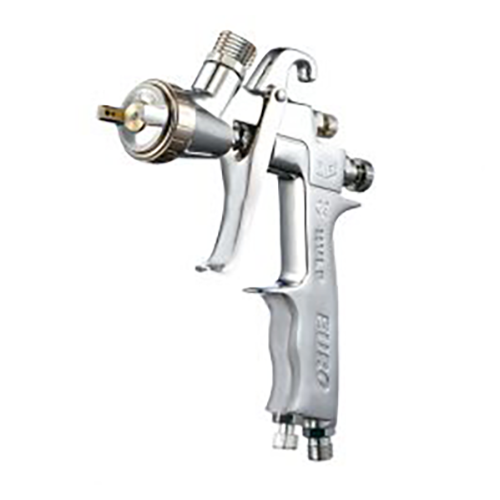

MG Euro 2200 Series HVLP Air Spray Gun

Overview

The Euro 2200 Series HVLP Air Spray Gun by MGD is a commercial-grade gravity-feed spray gun engineered for high-production automotive refinishers and industrial applicators requiring rapid surface coverage with minimal overspray. Featuring an extra-wide 300–320mm pattern width and precision stainless steel fluid components, the MG Euro 2200 delivers exceptional finish quality while maintaining efficient air consumption operating between 15–28 PSI.

Key Features

• Ultra-Wide 300–320mm Pattern Width: Provides broad, even fan distribution for rapid coverage on large panels and industrial equipment.
• Stainless Steel Nozzle & Needle: Precision-machined stainless steel fluid components resist wear and corrosion, making it compatible with solvent and modern coating materials.
• Low Overspray Design: Optimizes paint transfer efficiency to reduce material waste and bounce-back in the spray booth.
• 8 Precision Nozzle Configurations: Highly adaptable setup options ranging from 1.2mm for fine topcoats up to 2.5mm for heavy primers and thick coatings.
• Lightweight Ergonomic Body: Reduced tool weight minimizes wrist and operator fatigue during long continuous spray shifts.

Technical Specifications

• Brand / Series: MGD / MG Euro 2200
• Technology: Standard Gravity-Feed
• Nozzle Sizes: 1.2mm, 1.3mm, 1.4mm, 1.5mm, 1.6mm, 1.8mm, 2.0mm, 2.5mm
• Working Pressure: 15–28 PSI
• Air Consumption: 270 L/Min (1/4″ NPS Inlet)
• Pattern Width: 300–320mm
• Fluid Passages: Stainless Steel
