Overview

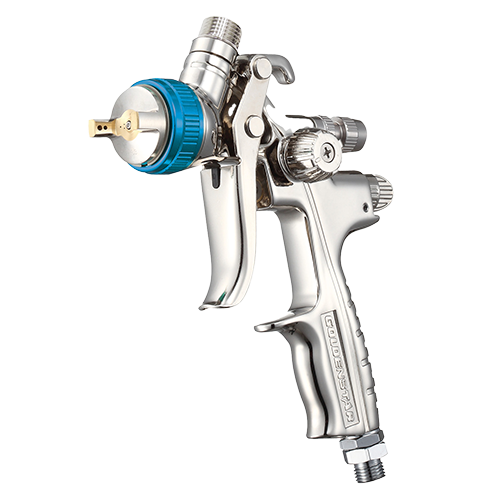

The GoldenStar 2000M Series MP Air Spray Gun by MGD is a commercial-grade Medium Pressure (MP) spray gun engineered for automotive body shops and industrial coaters requiring fast production speeds with minimal air consumption. Weighing an ultra-light 514g, the GoldenStar 2000M Series delivers a wide 300mm fan pattern and balanced 130 c.c./min fluid output, ensuring smooth, factory-grade atomization on large surfaces while reducing operator fatigue.
Key Features
- Efficient Air Consumption: Consumes only 210 L/Min at 15–28 PSI, reducing compressor demand while maintaining consistent atomization pressure.
- Ultra-Lightweight 514g Frame: Exceptionally light, drop-forged body minimizes hand and wrist strain during long continuous painting sessions.
- 6 Precision Nozzle Configurations: Versatile sizing options ranging from 1.2mm for fine topcoats up to 2.5mm for heavy primers and high-solid coatings.
- Wide 300mm Pattern Width: Provides uniform, consistent fan distribution to maximize coverage rate per pass.
- Standard 3/8″ PS Fluid Connection: Threaded fluid inlet compatible with commercial gravity cups and adapter systems.
Technical Specifications
- Brand / Series: MGD / GoldenStar 2000M Series
- Technology: Medium Pressure (MP / High Transfer)
- Nozzle Sizes: 1.3mm, 1.4mm, 1.7mm, 2.1mm, 2.5mm
- Working Pressure: 15–28 PSI
- Air Consumption: 210 L/Min (1/4″ PF Air Inlet)
- Fluid Output: 130 c.c./Min
- Pattern Width: 300mm
- Fluid Connection: 3/8″ PS Threaded
