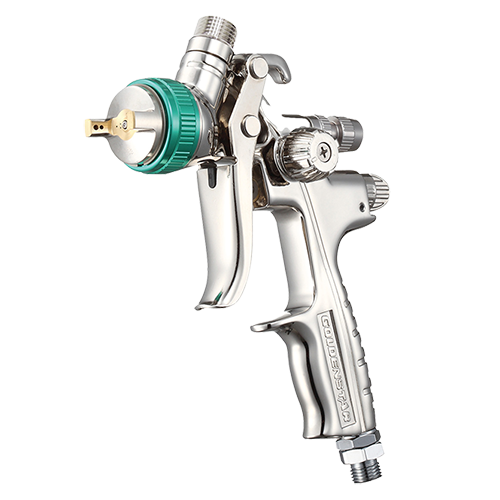

GoldenStar 2000H Series HVLP Air Spray Gun

Professional Grade Gravity-Feed HVLP Spray Gun with 1.7mm Nozzle & Precision Air Control

GoldenStar 2000H Series HVLP Air Spray Gun

Professional HVLP Paint Spray Gun

Engineered for precision atomization and high transfer efficiency across an expansive range of material viscosities. Features an ultra-wide 300mm pattern width and standard M16 x 1.5 fluid fitting for seamless compatibility with professional gravity cups and adapter systems.

  • Nozzle Options: 1.3mm, 1.4mm, 1.7mm, 2.1mm, 2.5mm
  • Air & Pressure: 250 L/Min @ 15–28 PSI
  • Paint Output: 145 c.c./Min (300mm Pattern Width)
  • Inlet Specs: 1/4″ PF Air Inlet | M16 x 1.5 Fluid Connection
  • Ideal For: Topcoats, Basecoats, Clearcoats, Heavy Primers, Fillers, and High-Viscosity Specialty Coatings

$175.00

For SoCal residents, in stock at the Los Angeles warehouse.

SKU N/A Categories , , Tags , , , , , , , , , , , , , , Brand:

Overview

The GoldenStar 2000H Series HVLP Air Spray Gun by MGD is a commercial-grade High Volume Low Pressure (HVLP) spray gun built for high-production auto body technicians and industrial finishing specialists. Weighing just 620g, this lightweight yet robust gun delivers a wide 300mm fan pattern and consistent 145 c.c./min paint delivery, allowing operators to achieve smooth, factory-grade coverage with minimal material bounce-back.

Key Features

  • 9 Precision Nozzle Configurations: Unmatched range spanning 1.0mm for fine touch-ups and thin topcoats up to 3.0mm for heavy fillers, primers, and high-solid coatings.
  • Ultra-Wide 300mm Pattern Width: Delivers uniform, consistent fan distribution to increase coverage speed on broad surfaces and automotive panels.
  • M16 x 1.5 Threaded Fluid Connection: Industry-standard fluid thread accepts heavy-duty aluminum gravity cups and modern disposable cup adapter systems.
  • Ergonomic & Lightweight Design: Balanced 620g body reduces hand fatigue during extended production cycles in spray booths.

Technical Specifications

  • Brand / Series: MGD / GoldenStar 2000H Series
  • Technology: High Volume Low Pressure (HVLP)
  • Nozzle Sizes: 1.3mm, 1.4mm, 1.7mm, 2.1mm, 2.5mm
  • Working Pressure: 15–28 PSI
  • Air Consumption: 250 L/Min (1/4″ PF Air Inlet)
  • Fluid Output: 145 c.c./Min
  • Pattern Width: 300mm
  • Fluid Connection: M16 x 1.5 Threaded
Weight 3 lbs
Nozzles

1.3mm, 1.4mm, 1.7mm, 2.1mm, 2.5mm
